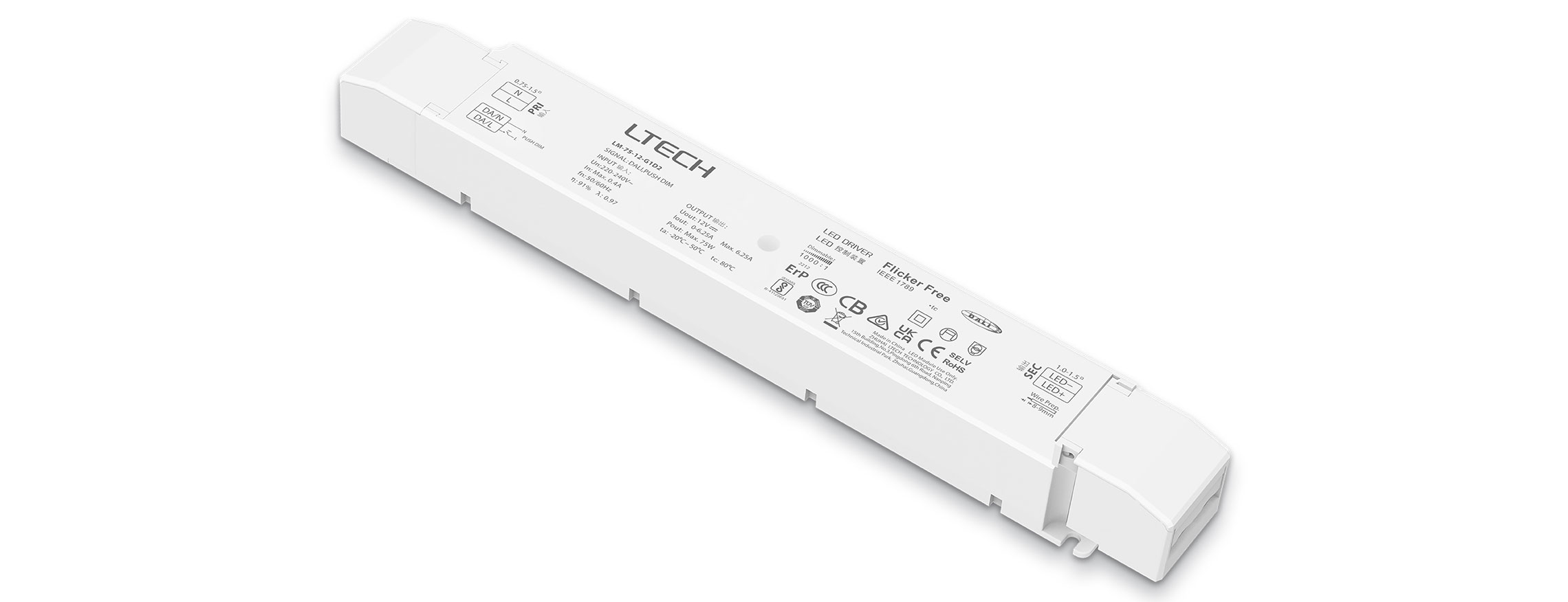

LM-75-12-G1D2 |
|
| 調光接口: | DALI (IEC62386), Push Dim |
| 調光范圍: | 0~100%, LED從0.1%開始調光 |
| 輸入電壓: | 200-240Vac ±10%, 277Vac |
| 功率因數: | >91.5% |
| 效 率: | PF>0.96/230Vac , PF>0.95/277Vac (滿載) |
| 輸出電壓: | 12Vdc ± 0.5Vdc |
| 輸出功率: | 1~75W |
| 輸出電流: | Max. 6.25A |
| 工作溫度: | tc: 80℃ ta: -30 ~ 55℃ |
| 產品尺寸: | 292×43×30mm(L×W×H) |
| 包裝尺寸: | 296×44×33mm(L×W×H) |
| 重量(毛重) | 300g±10g |
