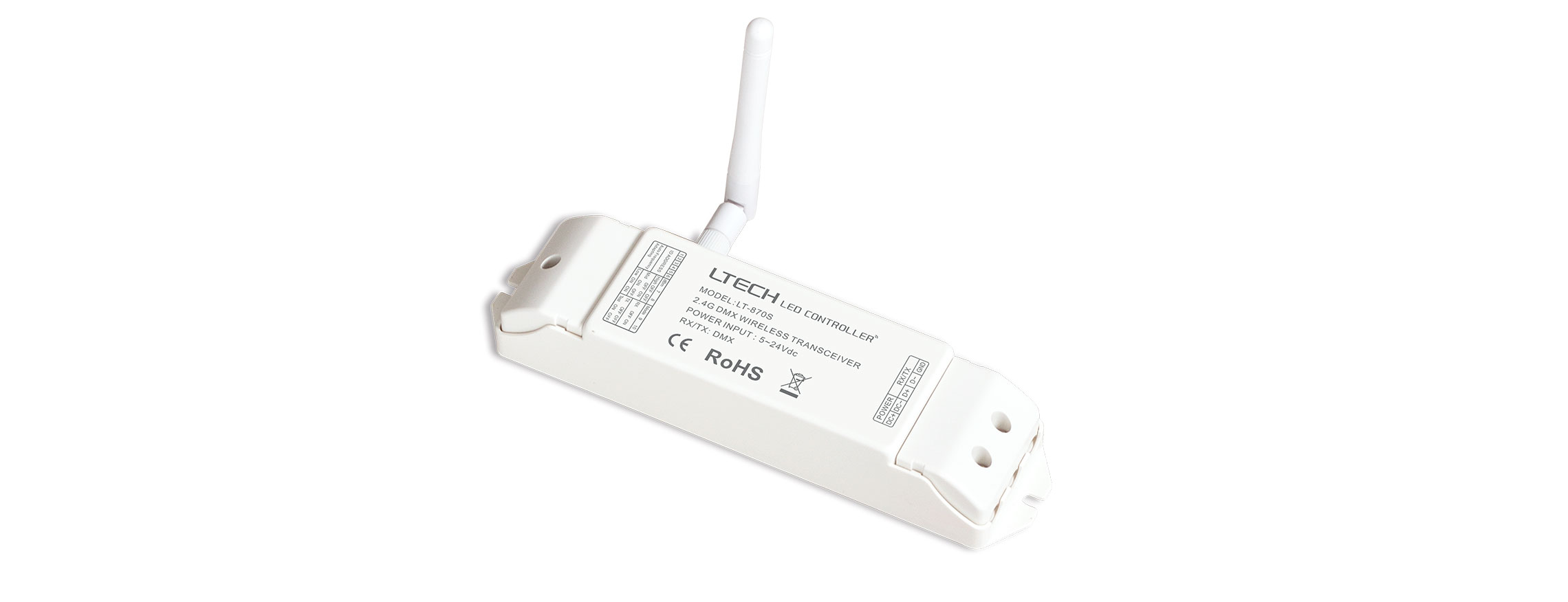

LT-870S Wireless DMX512 transceiver transfers the standard DMX512 protocol data by wireless transmission. One send, one receive or multiple receive. (Supporting point to point, point to multi-point), a sending end can configure multiple receiving ends as long as the receiving end and sending end are set as same ID.
The product is used for DMX console and lamp. The wireless data transmission between lamps replaces cable transmission which relies on twisted-pair, etc., for a long time. No delay and data is real-time and reliable during data transmission process,
The product adopts 2.4GHZ RF global open ISM frequency channel, which is a low-cost, powerful wireless DMX512 transceiver and widely applied to DMX512 controllers from various manufacturers.
LT-870S with automatic frequency hopping function, LT-870S will automatically choose clear channel to send DMX512 data when works as an emitter. and can search and match the correct channel to receive DMX 512 data when works as a receiver.
Use relay Settings if need further increase the communication distance.
| Input voltage | DC5V-DC24V |
| Input/output signal | DMX512 |
| Working frequency channel | 2.4GHz |
| Maximum transmitted power | 20dBm |
| Receiver sensitivity | -96dBm |
| Communication distance | 350m (Exist differences in different conditions, such as the weather \ environment etc.) |
| working temperature | -20℃～55℃ |
| Dimension | L175×W44×H30mm |
| Package Size | L178×W48×H33mm |
| Weight (G.W) | 125g |
