      dali controller































      LTECH Intelligent dimmable led
            driver have excellent performance:




      •
              Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
        •

      •
              Built-in SCM, dimming curve and smoothing time of power on can be customized.
        •

      •
              Dimming range:0~100%, LED start at 0.1% possible.
        •

      •
              Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
        •

      •
              Compliant with Safety Extra Low Voltage standard.
        •










              Triac CV Dimmable Driver








        •



          LM-150-12-G1T2F





           LM-150-12-G1T2F







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				220-240Vac





				Power Factor:

				PF>0.98/230Vac (at full load)





				Efficiency:

				90%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				12Vdc





				Output Current:

				Max. 12.5A





				Output Power:

				0~150W





				Dimming Range:

				0~100%, dimming down to 0.1%





				Certification:

				CCC,TUV,CE,KC,RCM,CB,EAC,ENEC,UKCA,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •

        •



          LM-150-24-G1T2F





           LM-150-24-G1T2F







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				220-240Vac





				Power Factor:

				PF>0.98/230Vac (at full load)





				Efficiency:

				91%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				24Vdc





				Output Current:

				Max. 6.25A





				Output Power:

				0~150W





				Dimming Range:

				0~100%, dimming down to 0.1%





				Certification:

				CCC,TUV,CE,KC,RCM,CB,EAC,ENEC,UKCA,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •



        •



          LM-36-12-G1T2





           LM-36-12-G1T2







				Rubycon capacitor





				Dimming Interface:

				Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.





				Input Voltage:

				200-240Vdc





				Power Factor:

				PF>0.95/230Vac , at full load





				Efficiency:

				84%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				12Vdc





				Output Current:

				Max. 3A





				Output Power:

				0~36W





				Dimming Range:

				0~100%, dimming down to 0.1%





				Certification:

				CCC,BIS,TUV,CE,KC,RCM,ENEC,CB,EAC,UKCA,ROHS,ERP





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •

        •



          LM-36-24-G1T2





           LM-36-24-G1T2







				Rubycon capacitor





				Dimming Interface:

				Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.





				Input Voltage:

				200-240Vdc





				Power Factor:

				PF>0.95/230Vac , at full load





				Efficiency:

				85%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				24Vdc





				Output Current:

				Max. 1.5A





				Output Power:

				0~36W





				Dimming Range:

				0~100%, down to 0.1%





				Certification:

				CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •



        •

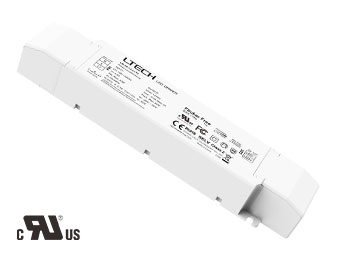

          LM-36-12-L1T2





           LM-36-12-L1T2







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				108-132Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				84%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				12Vdc





				Output Current:

				Max. 3A





				Output Power:

				0-36W





				Dimming Range:

				0~100%, down to 0.1%





				Certification:

				UL,FCC,CE,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •

        •



          LM-36-24-L1T2





           LM-36-24-L1T2







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				108-132Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				84%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				24Vdc





				Output Current:

				Max. 1.5A





				Output Power:

				0-36W





				Dimming Range:

				0~100%, down to 0.1%





				Certification:

				UL,FCC,CE,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •



        •



          LM-60-12-L1T2





           LM-60-12-L1T2







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				108-132Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				86%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				12Vdc





				Output Current:

				Max. 5A





				Output Power:

				0-60W





				Dimming Range:

				0~100%, down to 0.1%





				Certification:

				UL,FCC,CE,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •

        •



          LM-60-24-L1T2





           LM-60-24-L1T2







				Rubycon capacitor





				Dimming Interface:

				Triac/ELV, Push DIM





				Input Voltage:

				108-132Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				87%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				24Vdc





				Output Current:

				Max. 2.5A





				Output Power:

				0-60W





				Dimming Range:

				0~100%, down to 0.1%





				Certification:

				UL,FCC,CE,ROHS





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •



        •



          LM-75-12-G1T2





           LM-75-12-G1T2







				Rubycon capacitor





				Dimming Interface:

				Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.





				Input Voltage:

				220-240Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				87%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				12Vdc





				Output Current:

				Max. 6.25A





				Output Power:

				0~75W





				Dimming Range:

				0~100%, dimming depth: Max. 0.1%





				Certification:

				CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •

        •



          LM-75-24-G1T2





           LM-75-24-G1T2







				Rubycon capacitor





				Dimming Interface:

				Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.





				Input Voltage:

				220-240Vac





				Power Factor:

				PF>0.98/230Vac , at full load





				Efficiency:

				88%





				Fluctuation Level:

				High frequency exemption level.





				Output Voltage:

				24Vdc





				Output Current:

				Max. 3.125A





				Output Power:

				0~75W





				Dimming Range:

				0~100%, dimming depth: Max. 0.1%





				Certification:

				CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP





				Warranty:

				5 years










          [field:title/]


          Download Manual











          •


































  ?
