Platinum series LED controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present. PC engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. Widely controlled for RGB full color LED module, LED strip,LED SMD tape and all resistance of the current limit LED lighting products.
1、Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2、4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
3、16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
4、Can stop at static single color, speed & brightness adjustable at pause status.
5、Working with power repeater to expand power output unlimitedly.

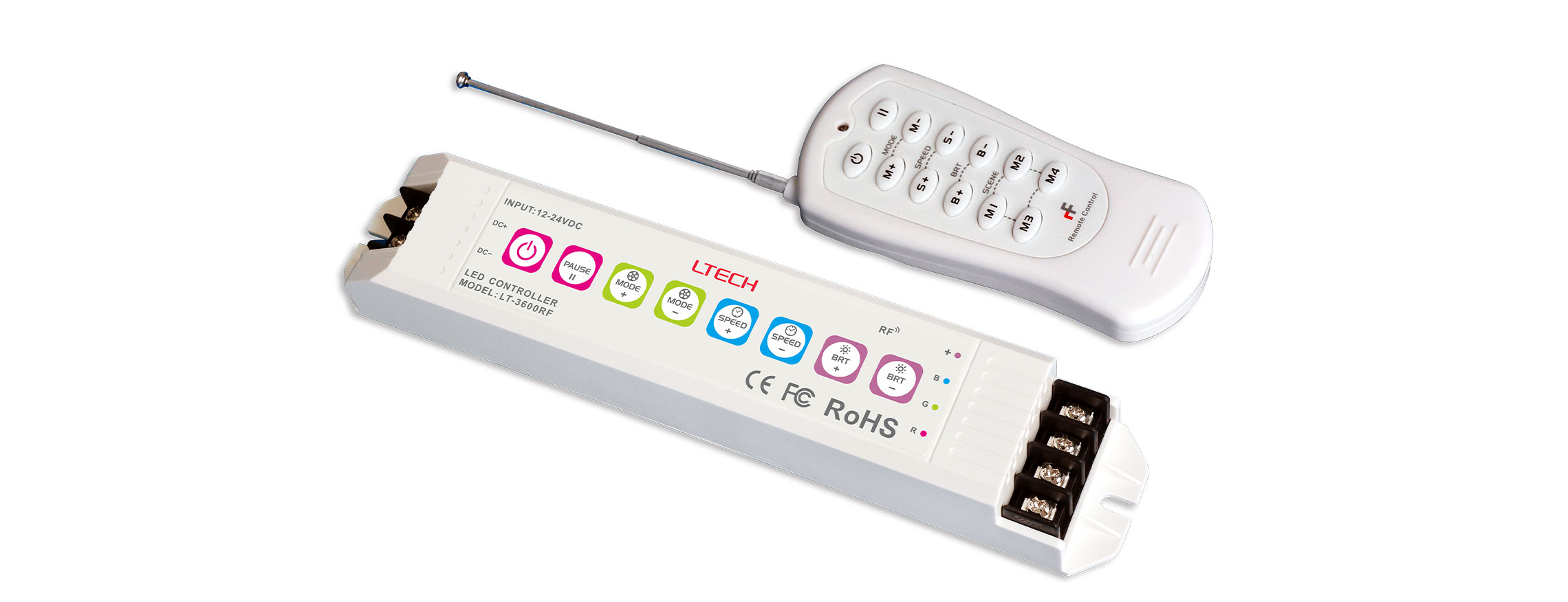

LT-3600RF |
|
| Input voltage | DC12V~DC24V |
| Max current load | 6A/CH x3 Max18A |
| Max output power | 216W/432W(12V/24V) |
| Scale levels | 4096×4096×4096 |
| Control button | 8 Press buttons |
| Function Mode | 32 modes |
| Remote control distance | 100m |
| Radio Frequency Range | 433.92MHz |
| RF Remote Output Power | 8mW |
| working temperature | -30℃~55℃ |
| Dimension | L211×W40×H30(mm) |
| Package Size | L313×W50×H32(mm) |
| Weight (G.W) | 230g |
