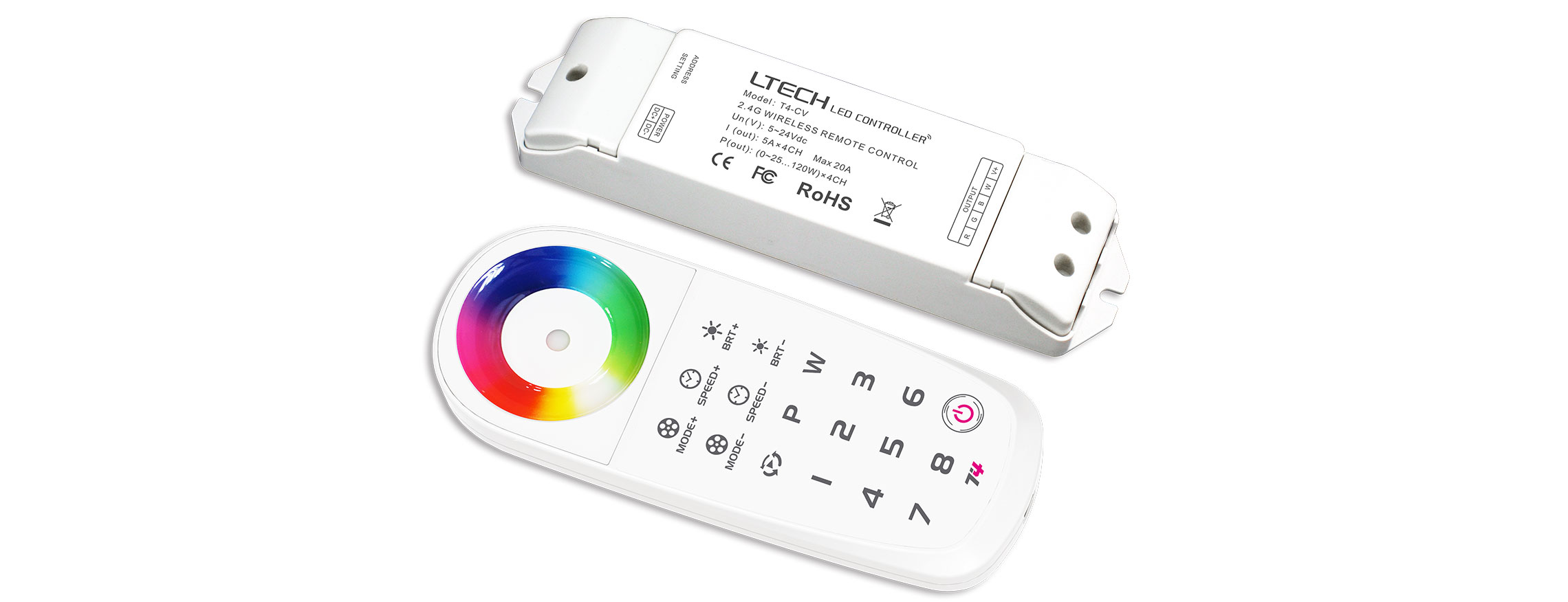

CV Receiving controller T4-CV

Description
Manual
Certificate
Video
Related

Brief introduction

T4 is the 2.4GHZ RF wireless synchronization/zone RGBW controller which adopts LTECH four global initiate technology(two invention patents, two patents of utility), which has the powerful function of most RF remote control can not realize, especially receiver between receiver without any cables can achieve dynamic effect synchronously, bring great convenience for users to install; T4 adopts the function of T3 / T3M/T3X RGB remote control for the past two years by customers like three functions in one, but use more simple.

To feel more features advantages waiting for you!

Product parameter

T4 Remote Control

Input voltage	DC5V(Built-in Lithium battery)
Working current	≤30mA
Working frequency	2.4GHZ
transmitting distance	30m
Remote option	sync or zone or programming control
Gray scale level	4096×4096×4096

Battery capacity	1000mAh
Working temperature	-20℃～55℃
Dimension	145×W55×H22mm
Package Size	168×W102×H28mm
Weight (G.W.)	200g

T4-CV CV Receiving controller
Input voltage	DC5V-DC24V
Max current load	5A×4CH Max 20A
Max output power	100W/240W/480W(5V/12V/24V)
Compatible remote control	workable with T4 remote control
Working temperature	-30℃～55℃
Dimension	L175×W44×H30mm
Package size	178×W48×H33mm
Weight (G.W.)	150g

T4-CC CV Receiving controller
Input voltage	DC12V-DC48V
Output voltage	DC3V~DC46V
Max load current	CC 350/700/1050mA 3 in 1×4CH
Output power	1.05W~48.3W ×4CH Max 193.2W
Compatible remote control	workable with T4 remote control
Working temperature	-30℃～55℃
Dimension	L175×W44×H30mm
Package size	178×W48×H33mm
Weight (G.W.)	165g

Product feature

RGBW 4 Channel control

T4 is available for RGB and RGBW LED lights.
A single ON/OFF function for White color and also dimming brightness independently.

Humanized touching full color wheel

Remote control adopts the capacitive touch control technology on the full color wheel, make the LED color selection more user-friendly.Unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote control.

Change whatever you like: Sync/Zone

T4 integrated sync control and zone control in two working ways, you could switch anytime anywhere to meet your needs at different times and different places.

2.4G RF wireless remote

Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.

More intuitive and visualization for programming

Meanwhile, T4 adding the new programable method, user can easily change a new DIY effects. How the programming so simple!

No wiring needed between the receivers

T4 utilizes advanced RF synchronous control technology,
it doesn't need any synchronous signal lines between all receive controller,Synchronization performance is stable and reliable, a very good solution for the LED project needs sync control wirelessly.

No more than 8 zones

T4 can support no more than 8 zones, one remote control can independent control the receiving controller no more than 8 pcs. Controller and the zones number for
one-to-one correspondence relationship, each controller correspond the only zones number .

3 spell into 1, use more simple!

T4 integrates ever T3、T3M、T3X three all functions, use more simple.
