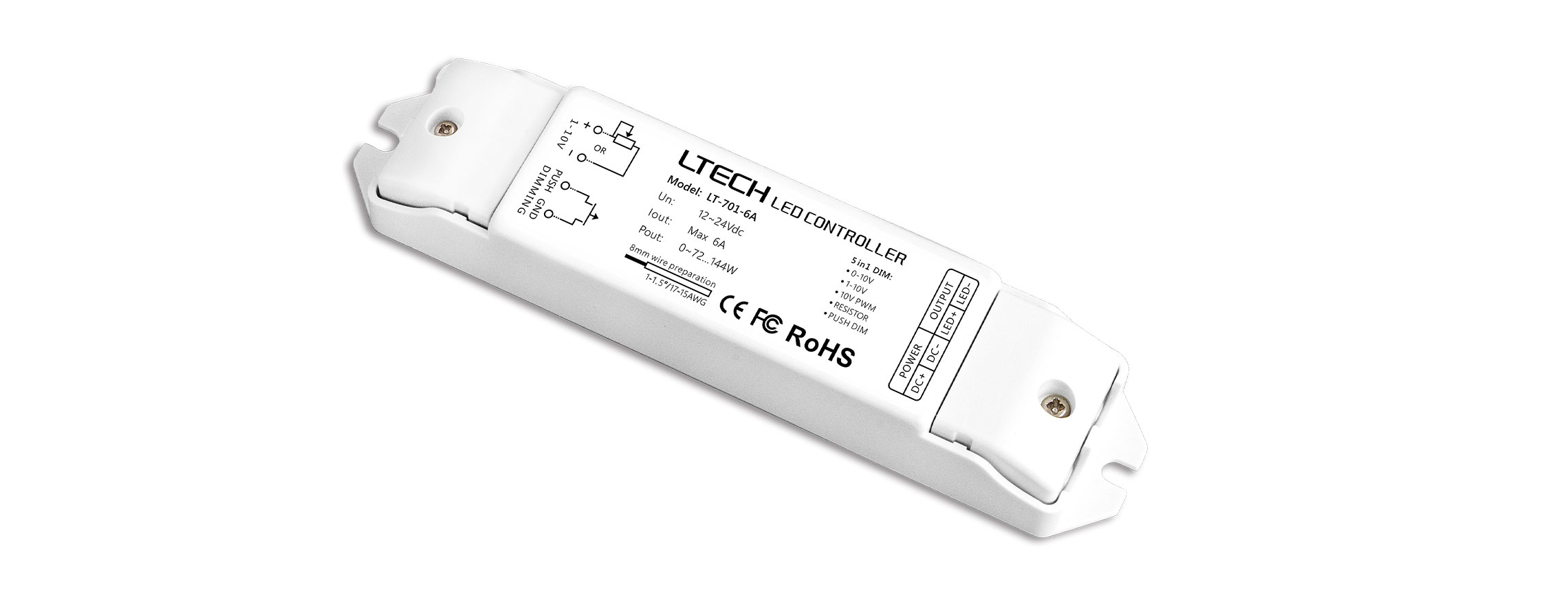

LT-701-6A CV 0-10V, 1-10V Dimming Driver |
|
| Input signal | 0-10V, 1－10V, 10V PWM or push button |
| Input voltage | DC12V~DC24V |
| Max load current | 6A ×1CH Max 6A |
| Max output power | 72W/144W(12V/24V) |
| Dimming Range | 0~100% |
| working temperature | -30℃~55℃ |
| Dimension | L135×W30×H20(mm) |
| Package Size | L140×W34×H23(mm) |
| Weight (G.W) | 65g |
